Reliable real-time axle weight measurement for commercial vehicles with leaf spring or air suspension. Seamlessly integrates with any GPS tracker or stand-alone in-cabin driver display.
Eliminate fines, protect vehicle running gear, and ensure complete transparency across all fleet hauling operations.
Avoid heavy municipal and highway fines for exceeding per-axle weight regulations. Protect suspension components, tires, and chassis from premature fatigue.
Safely utilize maximum carrying capacity of every vehicle on every trip. Maximize payload and fleet revenue without risking safety or regulatory violations.
Detect and record unauthorized loading and unloading events during shifts. Ensure drivers follow designated routes and carry only authorized freight.
A flexible architecture designed for instant integration with vehicle tracking terminals or independent cabin displays.
The axle load measurement system by Wagencontrol is an affordable, robust solution compatible with the majority of GPS tracking and telematics devices. Sensors convert mechanical deflection or pneumatic air pressure into standardized analog signals. When combined with telematics, fleet operators receive live weight data on their dispatcher screens. Alternatively, it can run stand-alone with a dedicated driver display in the vehicle cabin.

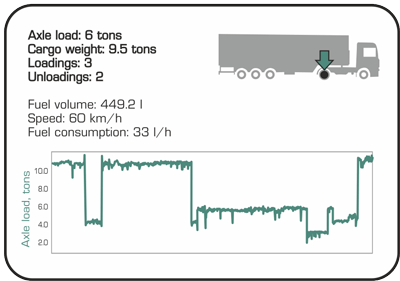

Real-time load distribution per axle transmitted to GPS tracker
Full cargo payload calculation and overload alert integration
Explore tailored sensor configurations for tippers, municipal dumpsters, and heavy articulated semi-trailers.

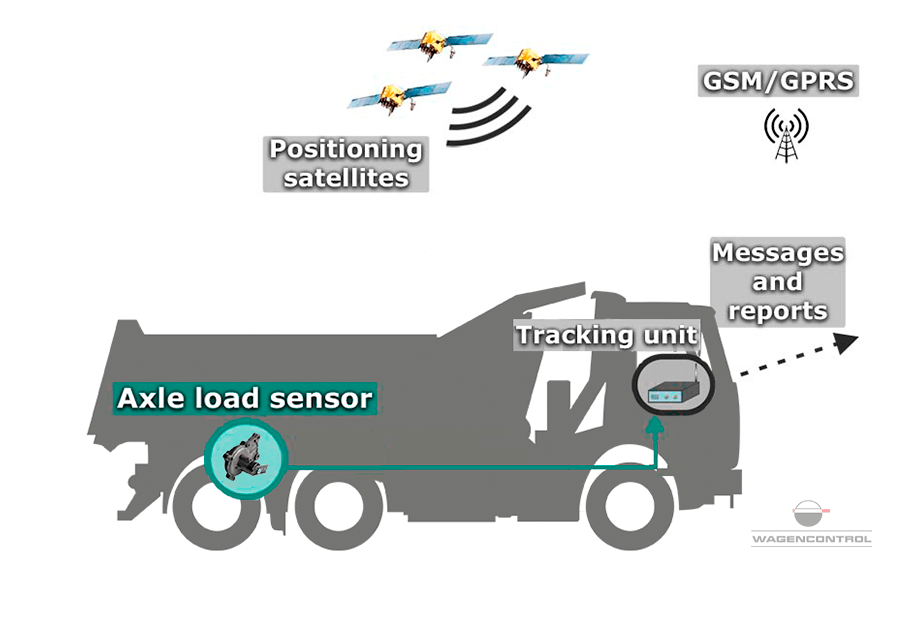

Designed for multi-axle dump trucks operating in demanding construction and mining environments with leaf spring suspensions.

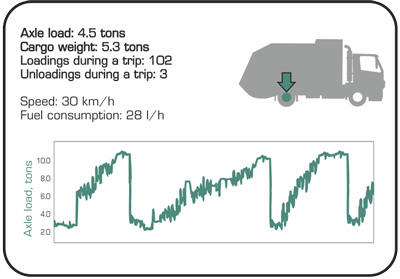

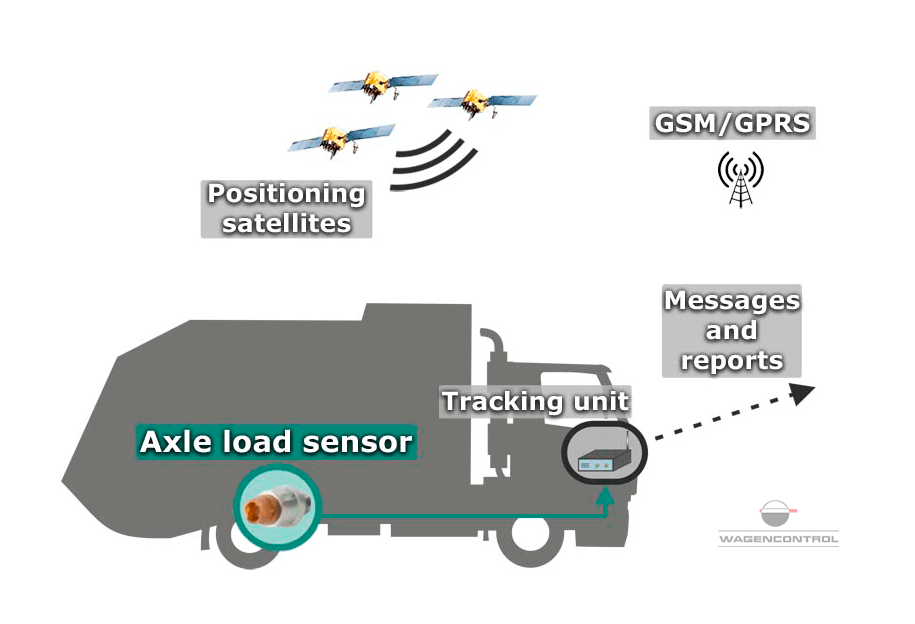

Tailored for municipal service providers and waste collection vehicles to verify service delivery at customer stops.

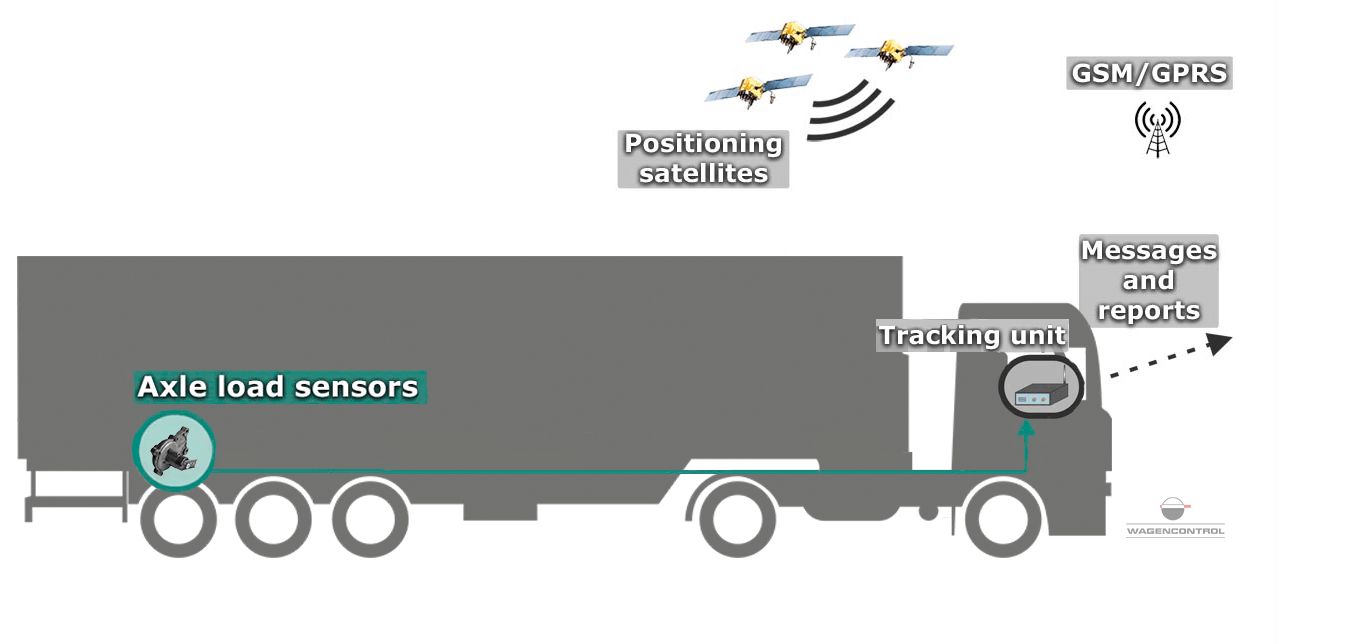

Ideal for interstate highway logistics, refrigerated transport, and container carriers with pneumatic or mixed suspensions.
Compatible with air suspension and mechanical leaf springs across a wide variety of industrial machinery.
Rigid & delivery trucks
Long-haul & freight trailers
Graders, tippers & dumpers
Tractors & grain trailers
Waste & municipal fleets
Proven sensor hardware engineered in Europe for precision, long service life, and extreme environmental durability.
Angular Position Sensor
GNOM DP position sensor is designed for measuring axle and cargo load on vehicles with mechanical leaf spring suspension. It integrates seamlessly into fleet monitoring systems and transmits data as an analog voltage signal. A single sensor installed on the rear axle or bogie is sufficient to monitor load.
| Supply Voltage Range | 8 – 32 V |
| Measurement Range | 1.5 – 3.5 MPa equiv. |
| Accuracy Error | ≤ 5.0% |
| Output Signal Type | Analog (0–5V) |
| Ingress Protection | IP67 Waterproof |
Pneumatic Pressure Sensor
GNOM DDE is an ultra-precise pressure sensor designed to determine axle load on vehicles equipped with pneumatic air suspension. It measures pressure directly in the suspension bellows and transmits high-fidelity analog readings to the telematics GPS tracker.
| Supply Voltage Range | 8 – 32 V |
| Pressure Range | 0 – 0.8 MPa |
| Accuracy Error | ≤ 2.5% |
| Output Signal Type | Analog (0–5V) |
| Ingress Protection | IP67 Waterproof |
For instant on-the-go driver feedback, we recommend pairing GNOM sensors with the MasterCAN Display 35 in the vehicle cabin. Drivers view instant axle load before pulling out of loading docks, ensuring 100% compliance prior to highway entry.
Fill out your fleet details below and our technical engineers will prepare an exact proposal within 24 hours.
We accept wire bank transfer (SEPA / Swift) and PayPal for prompt processing.
Goods are stocked and shipped directly from Wagencontrol s.r.o. headquarters in the Czech Republic.
Transported via DHL or FedEx Express with guaranteed delivery within 2–4 business days from dispatch date.
Expert pre-sales & after-sales engineering support available in English and Arabic via [email protected].
